 ADMIRAL BLUE |
 SCARLET RED |
 MAJESTIC BLACK |
FEATURES
 244CC ENGINE |
 DUAL DRAIN ANTI-LOCKBRAKE SYSTEM (ABS) |
 UPSIDE-DOWN FRONT FORKS |
 KYB SHOCK ABSORBER |
 LCD DISPLAY SCREEN |
 USB CHARGING PORT |
 POWER CONNECTER 12V10A |
 SMART KEY SYSTEM |
 LED HEADLIGHTS |

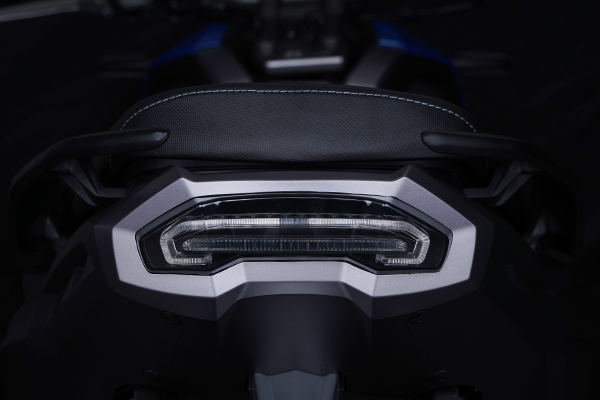

 STYLISH TAIL LIGHTS |
 13.5 LITER FUEL TANK |
 LIGHT SWITCH |
 DUAL EXHAUST PIPE |
 SEAT BUTTON |
 SIDE STORAGE SPACE(LEFT & RIGHT) |
 ANTI-SLIP PADS |
 ADJUSTABLE ALUMINIUM HANDLE |
 26-LITER STORAGE SPACE |
 ADJUSTABLE WINDSHIELD |
 RIM 'CAST' |
 TUBELESS SPOKE RIM (XDV250I PX ONLY) |
 TALLER WINDSHIELD (XDV250I PX ONLY) |
 TOP & SIDE BOX (XDV250I PX ONLY) |
SPECIFICATION
| ENGINE | |
|---|---|
| TYPE | 4-stroke, single cylinder, 4-valves, sohc |
| BORE X STROKE | 72mm X 60mm |
| DISPLACEMENT | 244 |
| MAX POWER | 24.8Hp @ 8750 rpm |
| MAX TORQUE | 23.0Nm @ 6750 rpm |
| COMPRESSION RATIO | 11:1 |
| FUEL SYSTEM | Fuel injection |
| TRANSMISSION | Belt drive |
| LUBRICATION SYSTEM | Power lubricant |
| CLUTCH TYPE | Automatic cvt |
| STARTER | Electric |
| IGNITION | TLI |
| CHASSIS | |
|---|---|
| FRONT SUSPENSION | Upside down, telescopic |
| REAR SUSPENSION | Telescopic shock absorber |
| FRONT BRAKE | Abs, 250 mm |
| REAR BRAKE | Abs, 220 mm |
| FRONT TYRE | 110/70-13 |
| REAR TYRE | 130/70-13 |
| DRY WEIGHT | 159 kg |
| SEAT HEIGHT | 800 mm |
| OVERALL LENGTH | 1940 mm |
| OVERALL WIDTH | 780 mm |
| WHEELBASE | 1390 mm |
| FUEL CAPACITY | 13.5 l |
| BATTERY | 12V10Ah |
