YAMAHA XMAX 250 V1 (2019) VS XMAX 250 V2 (2023)

PANEL METER

V1 - Menggunakan paparan panel meter analog & digital

V2 - Paparan skrin TFT 4.2 inci berwarna penuh dan sambungan Y-Connect berasaskan teknologi daripada GARMIN serta tambahan skrin LCD 3.2 inci untuk paparan speedometer dan fuel level

REKAAN LAMPU DEPAN

V2 - Mengetengahkan penggayaan bentuk "X"

REKAAN LAMPU BELAKANG

V2 - Memaparkan cahaya brek macam bentuk "X"

REKAAN MOUNTING SIGNAL

V1 - Signal depan terletak di bawah berdekatan dengan fork depan

V2 - Signal depan terletak di posisi atas berdekatan windshield

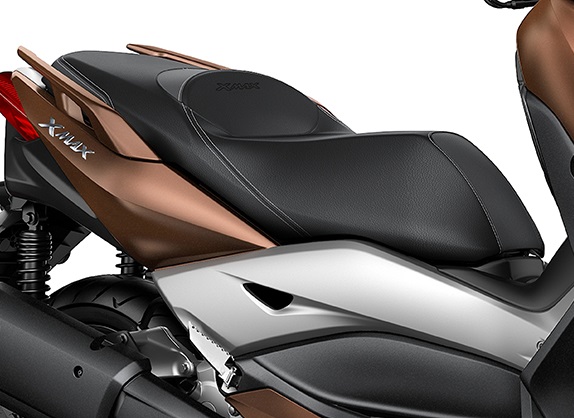

REKAAN SEAT

V1 - Rekaan ergonomic

V2 - Direka semula untuk lebih slim can comfort

REKAAN PANEL BODY

V2 - Reka bentuk body panel menampilkan rekaan yang lebih bergeometrik dan bersudut

Harga motor : RM28,200 on the road
(Akan berubah dari masa ke semasa)

Unlock your X-Factor with the all-new upgraded Yamaha XMAX 250 (2023)! 🔥 PRE-BOOK YOURS TODAY @ Inti Deras Motors

SPECIFICATIONS

Xmax 250 V1 (2019)

Specifications

Xmax 250 V2 (2023)

Liquid-cooled, 4-stroke, SOHC, 4-valves	Type	Liquid-cooled, 4-stroke, SOHC, 4-valves
Single Cylinder	Cylinders	Single Cylinder
250 cc	Displacement	249.8 cc
70.00mm x 64.9mm	Bore x Stroke	70.00mm x 64.9mm
10.5:1	Compression ratio	10.5:1
16.8 kW @ 7,000 rpm	Maximum power	16.8 kW @ 7,000 rpm
24.3 Nm @ 5,500 rpm	Maximum torque	24.3 Nm @ 5,500 rpm
Wet Sump	Lubrication System	Wet Sump
Fuel Injection	Fuel system	Fuel Injection
TCI	Ignition system	TCI

Electric	Starter system	Electric
V-Belt Automatic	Transmission system	V-Belt Automatic
2,185 mm	Overall length	2,180 mm
775 mm	Overall width	795 mm
1,465 mm	Overall height	1,460 mm
795 mm	Seat height	795 mm
1,540 mm	Wheelbase	1,540 mm

135 mm	Minimum Ground Clearance	135 mm
179 kg	Wet weight	181 kg
13 L	Fuel tank capacity	13 L
Hydraulic single disc, 267 mm	Front brake	Hydraulic single disc, 267 mm
Hydraulic single disc, 245 mm	Rear brake	Hydraulic single disc, 245 mm
Telescopic forks	Front Suspension Type	Telescopic forks
Unit Swing	Rear Suspension Type	Unit Swing
110 mm	Front travel	110 mm
79 mm	Rear travel	79 mm
120/70-15	Front Tyre	120/70-15

140/70-14

Rear Tyre

140/70-14

REFERENCES

1. https://www.yamaha-motor.com.my/products/
